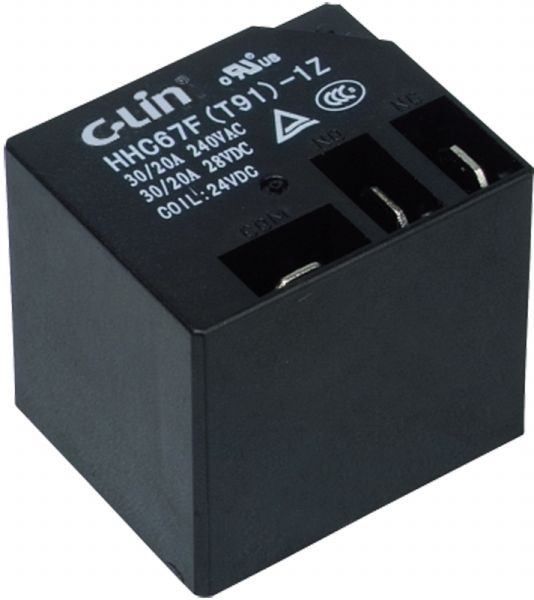

Product name : Mini PCB Relay T91
Product No. : 201511894827
Manufacturer :
|
| Details: |
Model: Mini PCB Relay T91
Dimension: 32mm×27mm×27mm Contact configuration: SPDT Rated resistive load: 30A 240VAC/28VDC Contact material: Silver alloy Coil voltage: DC12V, DC24V, DC36V, DC48V, DC110, AC12V, AC24V, AC36V, AC48V, AC110V, or AC220V Contact resistance: 50mΩ max. Operation time: 20ms max. Release time: 20ms max. Mechanical endurance: 10,000,000 operations min. Electrical endurance: 100,000 operations min. Weight: Approx. 35g |
