Products > Relay > Power Relay > JQX-40F-2C Power Relay

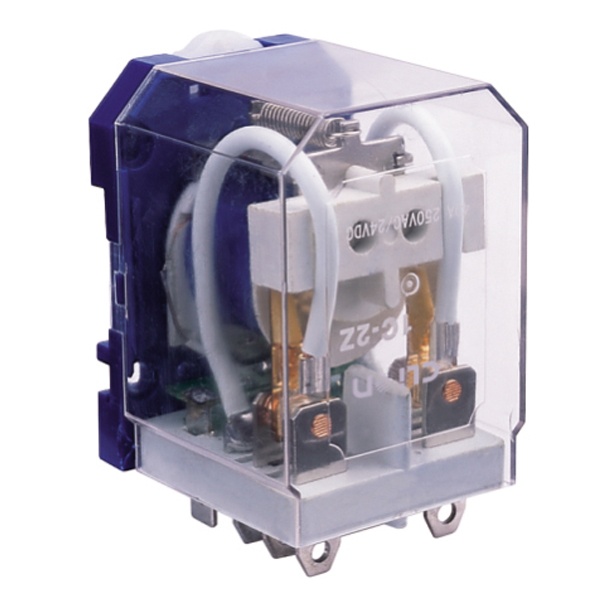

Product name : JQX-40F-2C Power Relay
Product No. : 201512114389
Manufacturer :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Model: JQX-40F-2C
Dimension: 68mm×48mm×60mm
Contact configuration: DPDT
Rated resistive load: 40A 240VAC/28VDC
Rated inductive load: 12A 240VAC/28VDC
Contact material: Silver alloy
Coil voltage: DC12V, DC24V, DC36V, DC48V, DC110, DC220, AC12V, AC24V, AC36V, AC48V, AC110V, AC220V, AC240V or AC380V
Contact resistance: 50mΩ max.
Operation time: 20ms max.
Release time: 20ms max.
Mechanical endurance: 10,000,000 operations min.
Electrical endurance: 100,000 operations min.
Weight: Approx.160g
