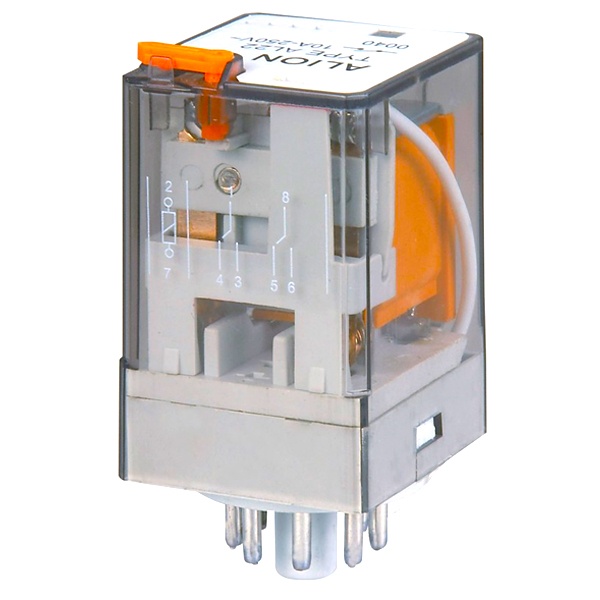

Product name : 60.22 Auxiliary Relay
Product No. : 2015122141127
Manufacturer :
|
| Details: |
Model: 60.22
Dimension: 33mm×37mm×53mm
Contact configuration: 2PDT
Rated resistive load: 10A 240VAC/28VDC
Contact material: Silver alloy
Coil voltage: DC12V, DC24V, DC36V, DC48V, DC110, DC220, AC12V, AC24V, AC36V, AC48V, AC110V, AC220V, AC240V or AC380V
Contact resistance: 50mΩ max.
Operation time: 20ms max.
Release time: 20ms max.
Mechanical endurance: 10,000,000 operations min.
Electrical endurance: 100,000 operations min.
Weight: Approx.85g |
